M113K Upper Fixed / Clutchless S/C Pulley
Super Member
Joined: Mar 2011
Posts: 502
Likes: 0
From: Porter Ranch, CA
E55, CTS-V Wagon, Duc 1098R
That's definitely one way to do it. The easier way is taking the upper rad support off and moving the fan up slightly so that you can get an impact extension in there. Took me 20min to do mine. I like the idea of making it interchangeable and that design actually doesn't seem that complicated.
MBWorld Fanatic!
Joined: Aug 2007
Posts: 2,596
Likes: 5
From: Jacksonville, FL
05 White Pano E55, Cadillac CTS-V
Cake.
Last edited by urbamworm; Mar 27, 2013 at 04:13 PM.
MBWorld Fanatic!
Joined: Aug 2007
Posts: 2,596
Likes: 5
From: Jacksonville, FL
05 White Pano E55, Cadillac CTS-V
You need an impact, either battery powered or air or you are dead in the water.
Like mentioned earlier, the piece that goes across the top of the radiator from one side of car to the other (radiator support) has a section in the center that can be unbolted (about 3 feet long maybe?). There are a few bolts on each side and then a few in the center around the hood latch, undo all those and remove that piece.
There are 2 clips, one on each side of the top of the radiator/fan shroud, remove those and then pull the fan up. You will have to move it around the radiator hoses which is a little tricky but not hard, just have to force it around and up. Pull that up far enough so you can see through a hole in the shroud to the pulley bolt.
Take an extenion (as short as possible to retain as much torque as possible) and the correct size socket and slide it through the fan shroud on to the pulley. Put your impact on the socket then grab the magnet of the supercharger (black thing behind pulley) and hold it with one hand while you hit the impact to loosen the bolt. You may have to hit it in reverse then back to tighten to break it free then go loose again and it should come off.
Pry the pulley off, it may come easy, it may need some persuasion and then put the new pulley on (and probably a few shims) and put everything back together.
Easy breezy.
Like mentioned earlier, the piece that goes across the top of the radiator from one side of car to the other (radiator support) has a section in the center that can be unbolted (about 3 feet long maybe?). There are a few bolts on each side and then a few in the center around the hood latch, undo all those and remove that piece.
There are 2 clips, one on each side of the top of the radiator/fan shroud, remove those and then pull the fan up. You will have to move it around the radiator hoses which is a little tricky but not hard, just have to force it around and up. Pull that up far enough so you can see through a hole in the shroud to the pulley bolt.
Take an extenion (as short as possible to retain as much torque as possible) and the correct size socket and slide it through the fan shroud on to the pulley. Put your impact on the socket then grab the magnet of the supercharger (black thing behind pulley) and hold it with one hand while you hit the impact to loosen the bolt. You may have to hit it in reverse then back to tighten to break it free then go loose again and it should come off.
Pry the pulley off, it may come easy, it may need some persuasion and then put the new pulley on (and probably a few shims) and put everything back together.
Easy breezy.
MBWorld Fanatic!
Joined: Dec 2011
Posts: 4,599
Likes: 102
From: Florida
A Merc
I have seen some fans not move and if they did the clips broke so to avoid that did the jacking up of the motor, I'm curious as to cougar jacking up the motor without taking out the screws..
MBWorld Fanatic!
Joined: May 2011
Posts: 1,109
Likes: 20
From: Las Vegas, NV
1000Hp Diesel Trucks, 2019 E63s
Literally put a block of wood under the oil pan and jack the motor up, done it on several cars(E55'S) and it works like a charm.
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Super Member
Joined: Jan 2007
Posts: 852
Likes: 3
From: Sleepy Hollow, IL
65 Chevelle Wagon w/ C5 frame, 08 ML63, 04 S600, 04 E55,(sold) 00 ML55,(sold) 98 C43-55K Swap
MBWorld Fanatic!
Joined: May 2011
Posts: 1,109
Likes: 20
From: Las Vegas, NV
1000Hp Diesel Trucks, 2019 E63s
MBWorld Fanatic!
Joined: May 2011
Posts: 1,109
Likes: 20
From: Las Vegas, NV
1000Hp Diesel Trucks, 2019 E63s
We should have race.
Super Member
Joined: Nov 2006
Posts: 952
Likes: 9
From: NJ/Greece
2006 CLS55 & 2002 SL55 (R129) Silver Arrow
Plan on putting it on as soon as we get warmer weather.
MBWorld Fanatic!
Joined: Dec 2011
Posts: 4,599
Likes: 102
From: Florida
A Merc

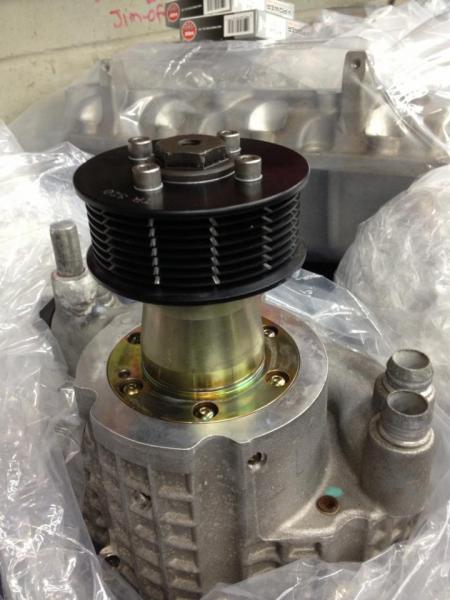

I haven't installed it yet but here is a picture of my current project. Its a hub system that will allow pulley sizes from the stock 3.6" all the way down to 2.7" (for every .1" decrease in pulley diameter, boost increases approximately 1.2lbs)
Plan on putting it on as soon as we get warmer weather.
Plan on putting it on as soon as we get warmer weather.
Senior Member
Joined: Nov 2012
Posts: 381
Likes: 0
From: Houston, TX
2006 E55
Tech tune, that unit looks amazing. That would really be a game changer for our crowd along with Shardul's unit. who is making your hubs and pulleys? The perpendicular grooves in the ribs reminds me of billetflow, but the face is different.
Thread Starter
Former Vendor of MBWorld
iTrader: (1)
Joined: May 2008
Posts: 12,139
Likes: 295
From: Houston
2003 W211 E55, 2003 W220 S600
MBWorld Fanatic!
Joined: Jun 2009
Posts: 1,693
Likes: 9
From: Houston, TX
2006 E55, 2012 Jeep SRT, 2008 G37s 6MT (The Mrs.), 2005 Explorer
I haven't installed it yet but here is a picture of my current project. Its a hub system that will allow pulley sizes from the stock 3.6" all the way down to 2.7" (for every .1" decrease in pulley diameter, boost increases approximately 1.2lbs)
Plan on putting it on as soon as we get warmer weather.
Plan on putting it on as soon as we get warmer weather.
MBWorld Fanatic!
Joined: Aug 2007
Posts: 2,596
Likes: 5
From: Jacksonville, FL
05 White Pano E55, Cadillac CTS-V
Super Member
Joined: Nov 2006
Posts: 952
Likes: 9
From: NJ/Greece
2006 CLS55 & 2002 SL55 (R129) Silver Arrow
Thank you, though I believe Shardul's set up is probably better.
His pulley can be installed without removing and disassembling the front of the blower, making the install quite simple.
I wish mine were a straight bolt-on, but some fab work needed to be done in order for it to fit the hub.
The magnet is heavy but its NOT rotational mass. The plate that covers the magnet is the part that rotates along with the pulley and it does not weigh as much.
If I remember correctly the magnet, plate, hub and stock pulley weigh 13.xx lbs
I don't remember the pulley's weight, I'll check when I get home.
Reason for EDIT: Needed to correct the information I posted
His pulley can be installed without removing and disassembling the front of the blower, making the install quite simple.
I wish mine were a straight bolt-on, but some fab work needed to be done in order for it to fit the hub.
The magnet is heavy but its NOT rotational mass. The plate that covers the magnet is the part that rotates along with the pulley and it does not weigh as much.
If I remember correctly the magnet, plate, hub and stock pulley weigh 13.xx lbs
I don't remember the pulley's weight, I'll check when I get home.
Reason for EDIT: Needed to correct the information I posted
Last edited by Tech-Tune; Mar 28, 2013 at 07:04 PM. Reason: Posted incorrect information
