OFFSET PICTURES&SET UP THREAD

I think this thread it will be useful for the newcomers.I often receive PM's with question about offset and tires set up.I posted here some pictures with my set up maybe it will help.I think all senior members should post pictures and info about their set ups.I hope i am not wrong starting this thread.
My set up is FRONT:245/30/20 ET 35;8,5*20
REAR : 285/25/20 ET 45;10*20
I am using EIBACH springs.

Attached Thumbnails

OFSSET PICTURES&SET UP THREAD-800x600-1-.jpg

OFSSET PICTURES&SET UP THREAD-800x600-2-.jpg

OFSSET PICTURES&SET UP THREAD-800x600-3-.jpg

OFSSET PICTURES&SET UP THREAD-800x600-4-.jpg

Last edited by gavrocool; May 15, 2013 at 10:37 AM.

May 15, 2013 | 07:59 AM

Dr-Nab

Super Member

Joined: Dec 2010

Posts: 520

Likes: 3

From: Nottingham, England, UK

B8.5 Audi S5 3.0 TFSI Coupe

my set up:

front: ET40 8.5x19 235/35
rear: ET38 9.5x19 265/30
with H&R springs

OFSSET PICTURES&SET UP THREAD-img_1727ul_zpsb46c8212.jpg

OFSSET PICTURES&SET UP THREAD-img_1754resize_zpse6b8edc7.jpg

OFSSET PICTURES&SET UP THREAD-img_1756resize_zps22172969.jpg

May 15, 2013 | 09:41 AM

gavrocool

Thread Starter

Super Member

Joined: May 2007

Posts: 866

Likes: 10

e350 coupe

NICE PICS,NAB.I will post some nicer pictures.

May 15, 2013 | 10:13 AM

gavrocool

Thread Starter

Super Member

Joined: May 2007

Posts: 866

Likes: 10

e350 coupe

Some close-ups

May 15, 2013 | 10:22 AM

gavrocool

Thread Starter

Super Member

Joined: May 2007

Posts: 866

Likes: 10

e350 coupe

More angles.

OFSSET PICTURES&SET UP THREAD-pqo7fbj.jpg

OFSSET PICTURES&SET UP THREAD-7tp5qf5.jpg

OFSSET PICTURES&SET UP THREAD-uqh2pxb.jpg

OFSSET PICTURES&SET UP THREAD-qacu0gc.jpg

May 15, 2013 | 01:25 PM

threeMBs

MBWorld Fanatic!

Joined: Jul 2009

Posts: 3,530

Likes: 387

Only MBs - the best or nothing

Nice car, gavrocool. Underscores the pictures' background very well.

May 20, 2013 | 12:37 PM

nawlinstornado

Senior Member

Joined: Jun 2012

Posts: 359

Likes: 5

From: Arlington, VA

2012 E550 Coupe

19" x 8.5 ET40 Front
19" x 9.5 ET45 Rear
255/35 front tires
285/30 rear tires
Pics here: https://mbworld.org/forums/e-class-c...hopefully.html

6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)

Verdad Gallardo

Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun

Verdad Gallardo

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

Verdad Gallardo

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

Verdad Gallardo

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

Verdad Gallardo

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

Verdad Gallardo

Mercedes EQS Gets A Major Update: Everything You Need to Know

Verdad Gallardo

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

Verdad Gallardo

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

Verdad Gallardo

10 Most Reliable Mercedes-Benz Models You Can Buy Used

Verdad Gallardo

May 30, 2013 | 01:00 AM

Turbo MB 550C

Newbie

Joined: Jun 2012

Posts: 13

Likes: 0

From: Geneva, IL

2012 MB E550 Coupe

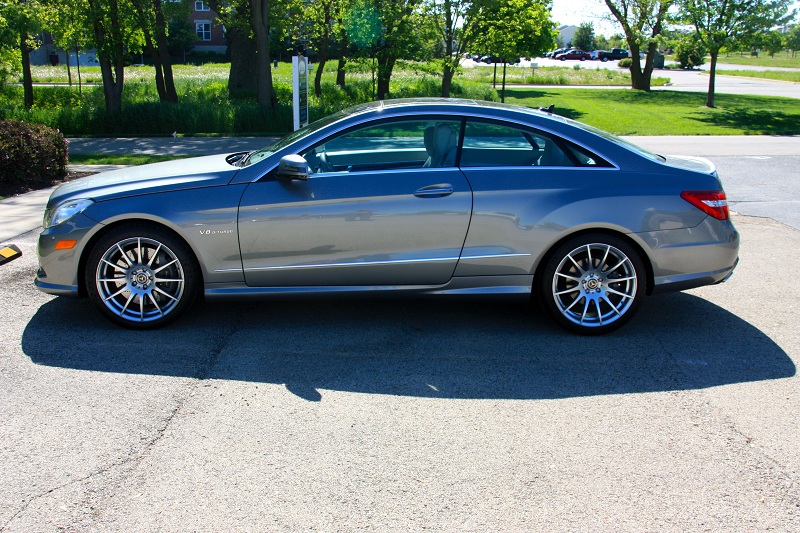

Here is my setup:

Velocity Motoring VMR 721 wheels
F: 19x8.5 ET35 235/40-19 Michelin Pilot Super Sport
R: 19x9.5 ET 45 265/35-19
Schrader 28214 TMPS sensors

No rubbing with stock suspension even with taller tires to reduce fender gap. Had good luck with VMR wheels on my Audi S4 so decided to give them a try on the E550. MB wheel caps do not fit these wheels so I bought some MB logo wheel center cap stickers off Ebay to cover the supplied wheel caps.

Very happy with this setup. Handling, tracking and grip all improved over OE wheels and tires.

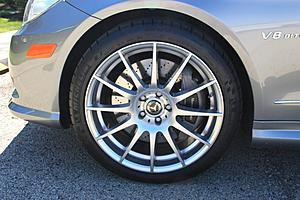

Attached Thumbnails
