---> CALI's hands-on ... STABLE CHASSIS VOLTAGE !!!
MBWorld God!
Joined: Dec 2019
Posts: 32,217
Likes: 6,275
I'm late joining this discussion, and I haven't thoroughly read and comprehended every post (some tangential to the OP topic), but has anyone verified that this single alternator wire is indeed a LIN bus? LIN bus connections are 3-wire -- power, ground and low speed bidirectional data -- that have LIN transceiver devices at each end to coordinate the exchange of data. This single wire is more characteristic of a quasi-static bi-level switch. Similar to a brake pad wear sensor that switches between ground and open. What exactly is being signaled to the ECU with this single wire that causes the reported behaviours?
BTW, I had my battery sensor disconnected for about 3 years to disable the start/stop function until I was able to kill it for good with my Launch scanner. The exuberance I experienced being rid of *** overwhelmed any sensation of improved engine or transmission performance, so unfortunately I have nothing to comment about regarding its impact.
BTW, I had my battery sensor disconnected for about 3 years to disable the start/stop function until I was able to kill it for good with my Launch scanner. The exuberance I experienced being rid of *** overwhelmed any sensation of improved engine or transmission performance, so unfortunately I have nothing to comment about regarding its impact.
MBWorld God!
Joined: Dec 2019
Posts: 32,217
Likes: 6,275
That is the confusing part, if it was just like other forum members' I would know how to approach it, if it looks exactly like the CPS connectors, I would had been able to do it easily as I am familiar with that, I unplugged the oil pump solenoid sensor from the top. This one on the other hand is confusing.
MBWorld God!
Joined: Dec 2019
Posts: 32,217
Likes: 6,275
It also certainly doesn't help that the rear of the sensor is facing the back side of the engine, if I can at least see how it looks like, I might had been able to successfully do it.
Last edited by W205C43PFL; Jan 20, 2025 at 10:49 AM.
Member
Joined: Mar 2022
Posts: 79
Likes: 7
C450
No need to see this connector, moreso by feel, notch is definitely there. Unfortunately only way would be to jack it up and do from bottom.. which is annoying in this Ontario cold. Fingers may be too weak to pull this thing off that is why a screwdriver wedged in between will loosen it up from bottom in my case atleast..
Joined: Nov 2016
Posts: 7,847
Likes: 3,495
From: Maryland
2015 SL400 (M276 Turbo), 2014 C350 Sport (M276 NA), 2004 SL500 (M113), 2004 Audi TT225 (BEA)
I'm late joining this discussion, and I haven't thoroughly read and comprehended every post (some tangential to the OP topic), but has anyone verified that this single alternator wire is indeed a LIN bus? LIN bus connections are 3-wire -- power, ground and low speed bidirectional data -- that have LIN transceiver devices at each end to coordinate the exchange of data. This single wire is more characteristic of a quasi-static bi-level switch. Similar to a brake pad wear sensor that switches between ground and open. What exactly is being signaled to the ECU with this single wire that causes the reported behaviours?
MBWorld God!
Joined: Dec 2019
Posts: 32,217
Likes: 6,275
No need to see this connector, moreso by feel, notch is definitely there. Unfortunately only way would be to jack it up and do from bottom.. which is annoying in this Ontario cold. Fingers may be too weak to pull this thing off that is why a screwdriver wedged in between will loosen it up from bottom in my case atleast..
MBWorld God!
Joined: Dec 2019
Posts: 32,217
Likes: 6,275

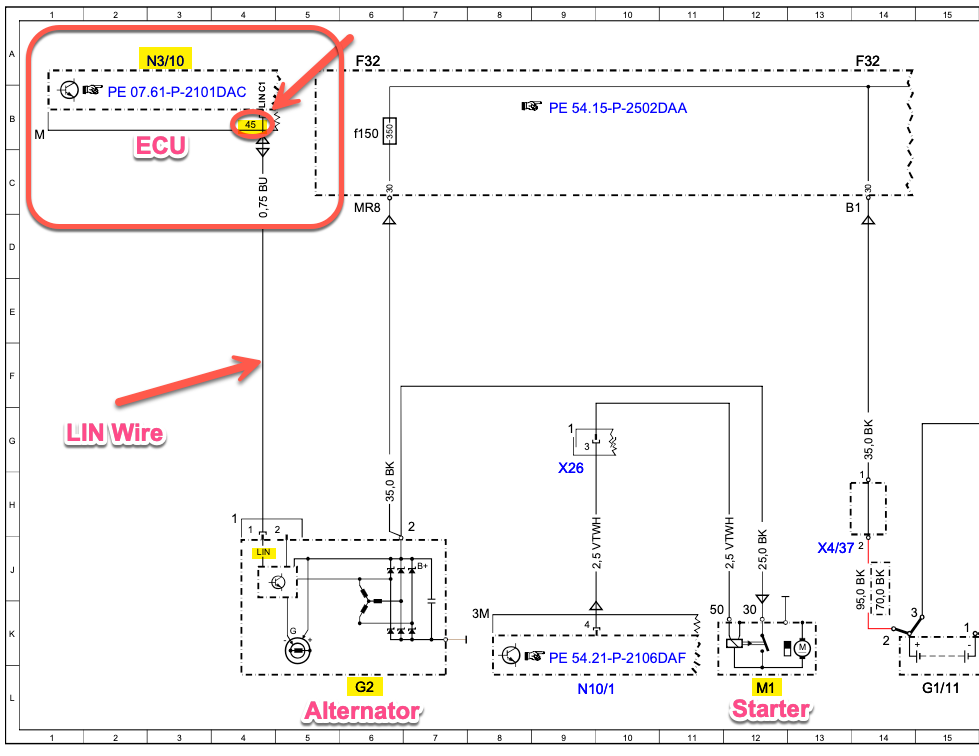

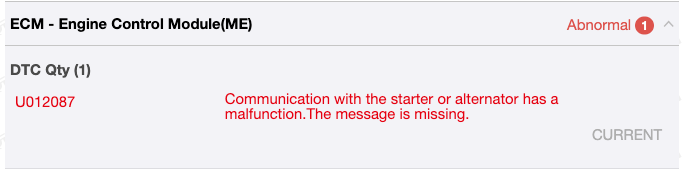

Not really sure what the signal is, but here is the schematic. You will get a DTC, but not a CEL.
https://cimg9.ibsrv.net/gimg/www.mbw...0f256894c2.png
https://cimg1.ibsrv.net/gimg/www.mbw...4cb47b20df.png
https://cimg9.ibsrv.net/gimg/www.mbw...0f256894c2.png
https://cimg1.ibsrv.net/gimg/www.mbw...4cb47b20df.png
